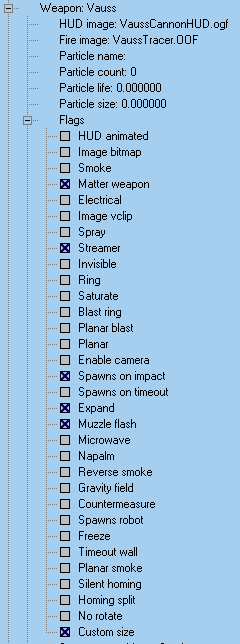

Hud Image:  Weapon Image (64x64) shown when HUD is cockpit Fire Image:  The "shot' the that is seen leaving the ship (oof. ogf, or oaf) Particle name: Particles dropped (trailing) behind the fire image  (usualy a weapon) ex. "plasma sparks" - the green spark  behind a SmartPlasmaHomers  Particle Life: How long the particle exists for. Particle size: ? Hud animated: ? Image bitmage: The fire image is a bitmap  (ogf).  ex. The omega Smoke: Smoke blobs drop behind the fire image.   ex. concussion missle Matter Weapon: Weapon is a physical object ex. vauss, conc. Missle (req'rs ammo) Electrical:  Electrical Storm weapon (Omega) Image Clip: The fire image is a video clip (oag)  ex. Napalm gun (flamethrower) Spray: The Weapen is a spray   ex. flamethrower Streamer: Streamer effect (streak) trails weapon.  ex. streaks behind frag particles Invisible: Weapon is invisible.  For a Gunbouy an Inv. weapon is dropped then spawns the gunbouy. Ring: Weapon is drawn ring style? Saturate: Saturate this bitmap weapon? Blast Ring: Creates a Blast Ring upon explosion? Planar Blast: Blast Bitmap takes on wall plane (stays flat planar to the wall, turn off, the blast image always faces you.) Planar:  The weapon doesn't always face you.  Enable Camera: Camera view from the weapon.  ex. Guided missle Spawns on impact:  Spawns a Weapon when if hits an object. ex. Smart Missle Spawns on timeout: Spawns a Weapon when life ends ex. Cyclone Expand: Weapon's explosion image expands (grows) Muzzle Flash: Flash produced at the gunpoint the weapon is fired from Microwave: Weapon produces Microwave Effect on Objects Napalm: Napalm effect on objects Reverse Smoke: Smoke trail gets smaller. ex shrinking rings of Microwave Gravity Field: Creates a gravity field (BlackShark) Countermeaser:  It's a coutermeasure Spawns Robot: Spawns a robot instead of weapon ex. Gunbouy  Freeze: Slows hit player. Timeout wall: I wall hit ends like a time out Planar Smoke: Planar smoke trail instead of blob ex. Homers and Smarts No Rotate: This weapon does not rotate as a bitmap? Custom Size: Uses Custom Size?

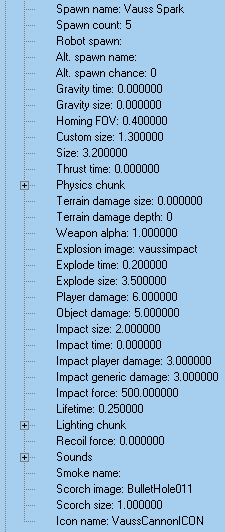

Spawn Name:  Name of weapon spawned upon impact Spawn Count:  Amount spawned (in this case 5 sparks spawn upon ompact) Alt. Spawn Name: An alternative weapon to spawn.  Alt. Spawn Chance: Chance (0 - 100%) that the alternate weapon will be spawned. Gravity Time: How long to create a gravity field (see BlackShark) Gravity Size: How big of a radius is the gravity field. Homing FOV: Cosine of the Field of View for homing weapons. Custom Size: Custom size of weapon (to override polymodel size) Size: Weapon 'blob' size. Thrust Time: How long this weapon thrust is on. Physics Chunk: Physics settings (I'll show seperately) Terrain Damage Size: Radius of terrain damage this weapon does to the terrain Terrain Damage Depth: How deep is the damage on the terrain Weapon Alpha: How alpha'd the weapon is (0 to 1.0, 0 being transparent) Explosion Image: D3 Texture Name (.gam) of the texture to use when the weapon explodes. Explode Time: How long the explosion image exists. Explode Size: Size of the explosion Player Damage: How much damage this weapon does to a player. Object Damage: How much damage this weapon does to a generic object. Impact Size: The radius of the sphere used when the weapon impacts and explodes. Impact Time: How long the impact affect lasts. Impact Player Damage: How much damage the impact explosion does to a player. Impact Generic Damage: How much damage the impact explosion does to a generic object. Impact Force: Amount of force caused by the impact explosion. Lifetime:  How long the weapon lives  It "TIMES OUT" when lifetime ends. Recoil Force: Recoil applied at release (Mass Driver or Mega) Sound Name:  D3 Table Sound (.gam) name of the sound associated with this sound slot. Smoke Name:  D3 Texture Name (.gam)of the texture for the smoke trail image Scorch Image:  D3 Texture Name (.gam)of the texture for the scorch mark left by this weapon. Scorch Size: Size of the scorch mark to leave Icon name: Weapon Image (32x32) shown when HUD is NOT a cockpit

Physics Chunk Expanded

Mass: Effects abilty to gain speed and turn Drag: Effects how faast an object's speed slows down (resistance) Full Thrust: Amount of thrust Roll when turning: Rolls when turning   ;) Leveling: Level object with closest side Bounce: Bounce (not slide) when hit will Wiggle: Wiggle while flying Stick: Sticks to wall or object (doesn't bounce or time out) ex. Napalm and Flares Persistent: Object keeps going even after it hits another object.  ex, Fusion Uses Thrust:  Uses its thrust Gravity:  Effected by gravity ex. Napalm, Impact Mortar, Bouncing Betty Ignores own conc forces: Ignore it's own concussion force? Wind:  Effected by wind Uses Parent Velocity: Fixed Velocity: Constant speed Fixed rot Velocity:  Constant rotation speed No Collide Parent: cannot collide with its parent Hits siblings: can collide with its siblings (like a proximity bomb) Reverse Gravity: flys upward with gravity No Collide: "No collisions AND NO RELINKS -- DANGEROUS TO USE if not used correctly" ? No robot collide: No collisions occur with robots Point collide walls: When colliding with walls, make our radius zero.  This means the only point of physical contact is the center of the object, not it's sides. Homing: This object (weapon) homes Guided: This object is guided Never use big sphere:  No same collision: No door collision:  Collision won't open a door? Rotational drag: Full rotation thrust:  effects speed of turning Number of Bounces:  amount of bounce before an impact time-out (explodes or dies) ex. Mortar has 2 bounces. Initial Velocity:  Speed upon release or spawn before thrust is applied Initial rotional velocity:  Intial turning speed.  Set speed for rotation upon each of the axis. (expand to access X, Y, Z) Wiggle amplitude: amount of movement. Wiggles per second: how many

Lighting Chunk Expanded:  Controls light cast by an object.  Ex. shoot a cyclone down a dark tunnel.  It lights the tunnel purple.
    Also for rotating lights.

Light distance:  distance light is cast? (need to test) Start red component:  amont of red lighting (0-1.0) Start Green light:  amount of green lighting (0-1.0) Start blue lighting: amount of blue lighting (0-1.0) Time Interval:  Flicker Distance: distance flickered light is cast? (need to test) Directional Field: of View: width of cone of light 0 - 1.0 (cosine of angle?) End red component: ? (usually same as Start) End green component: ? (usually same as Start) End blue component ? (usually same as Start) Flicker: flickers Time bits: Pulse:  light pulses ex.  emergency or warning lights Pulse to second: Directional: Light is a cone or beam, must set Directional Field of View No Specurlarity:  Does not have specular light cast upon it ? Time Bits: Angle: Not Used?? Render Type:  control effect of volumn lighting?
